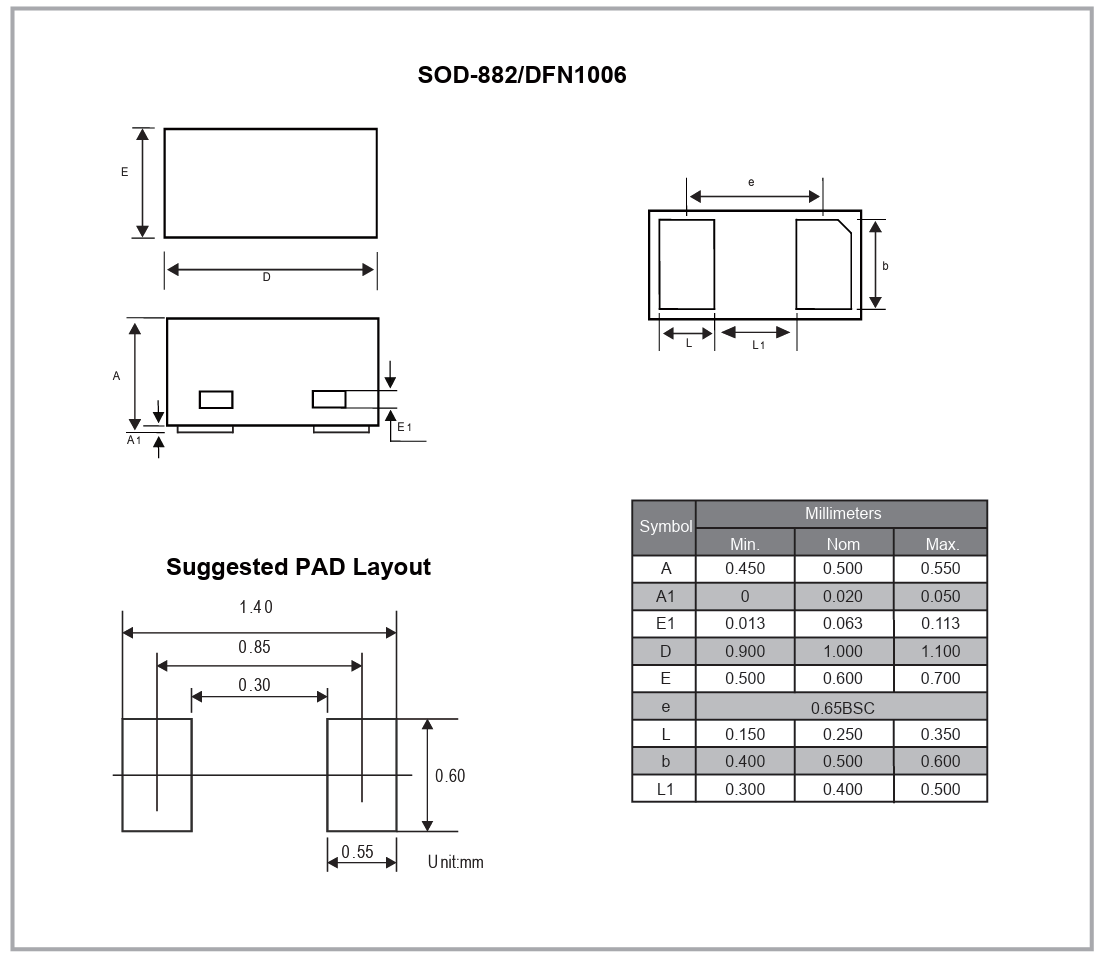

Package | DFN1006 |
VRWM Max. (V) | 3.3 |
VBR Min. (V) | 4.0 |
Vc @1A （V） | 8.5 |
IPP Max. (A) | 13.0 |
CJ@ 1MHZ (PF) | 1.2 |

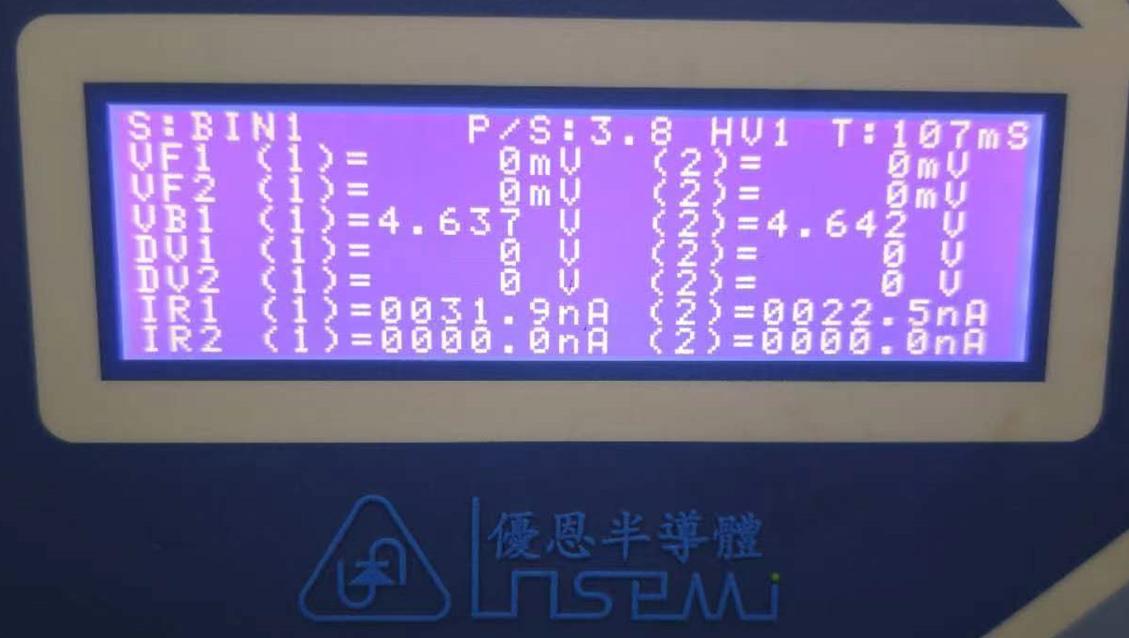

IR@VRWM Max. (uA) | 1.0 |
Protectable Lines | 1 |
AEC-Q101 | NO |

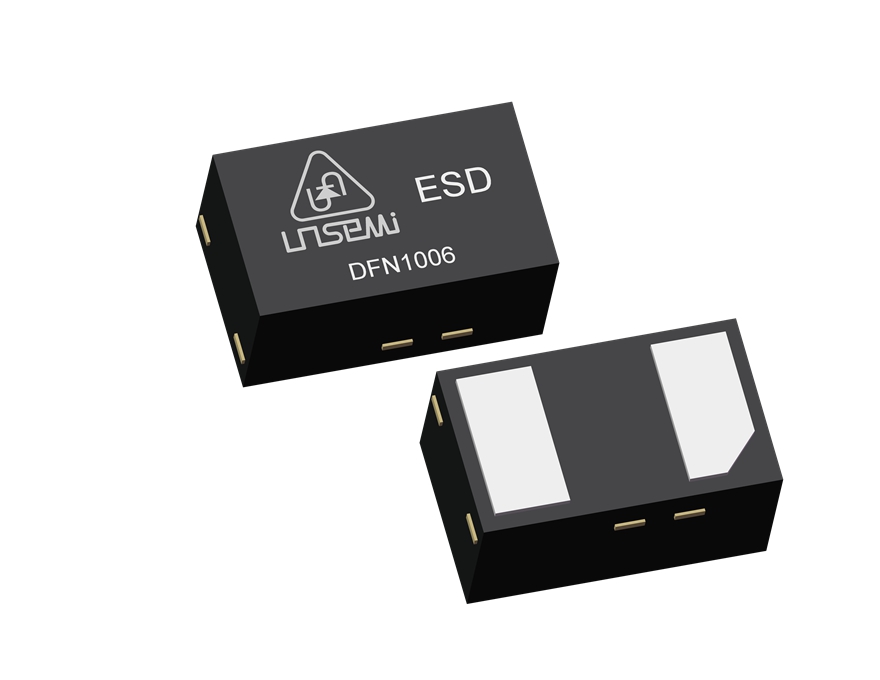

● Small size DFN1006

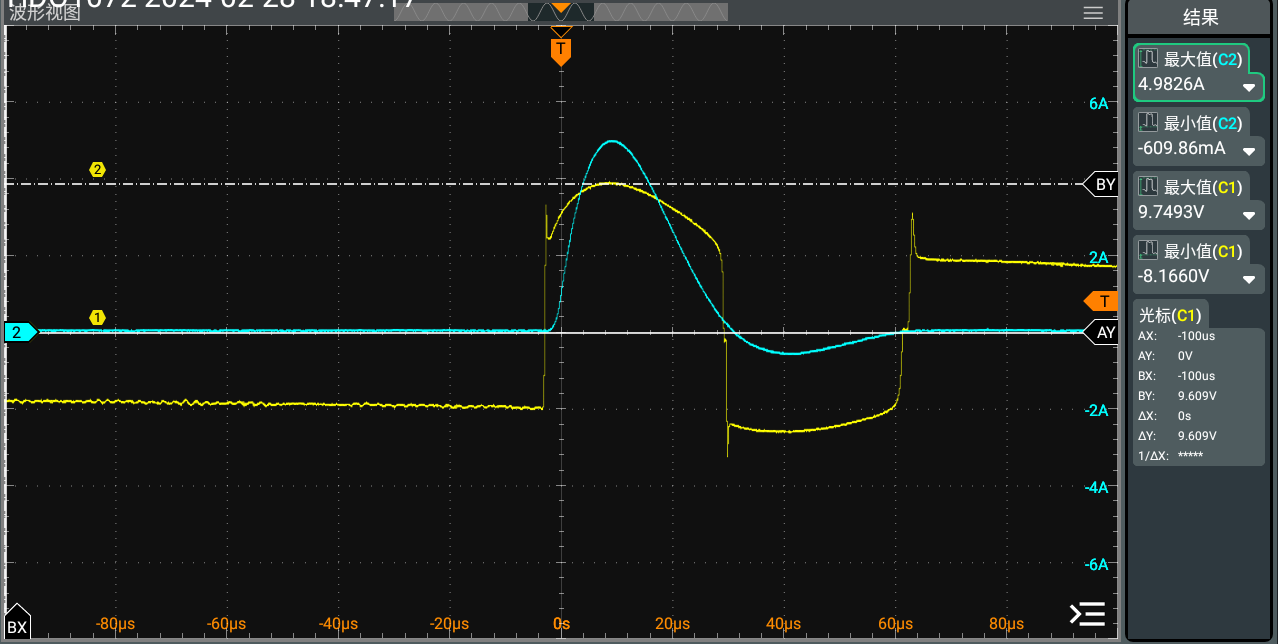

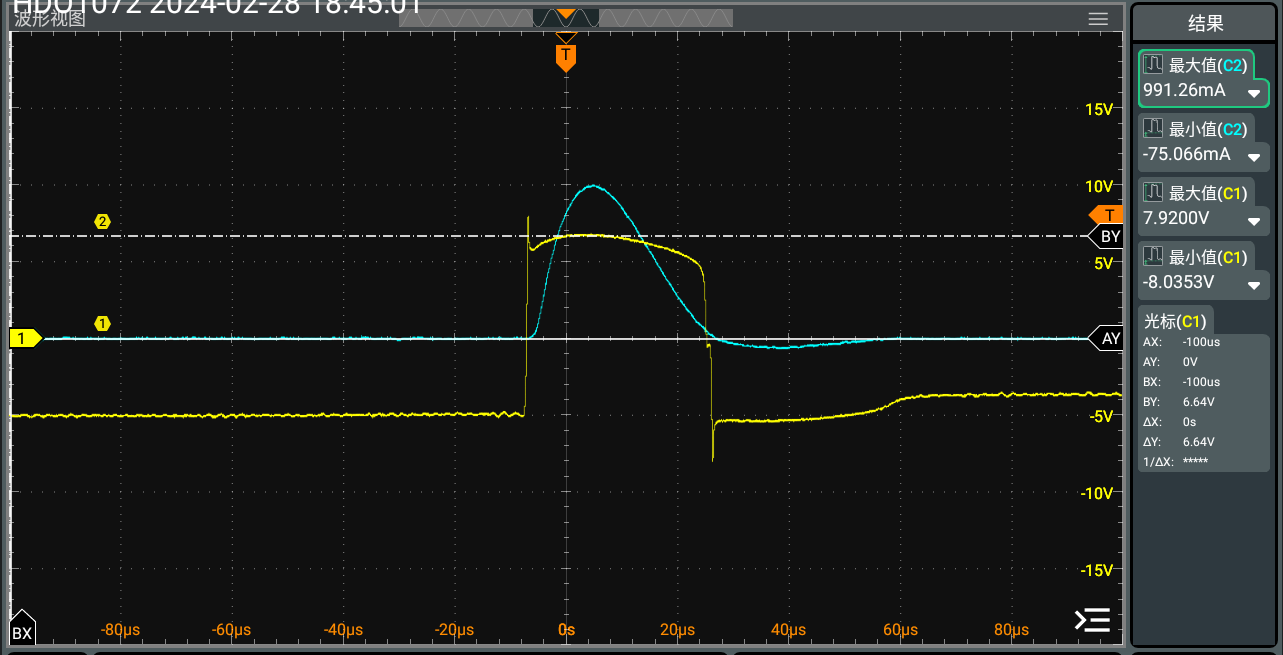

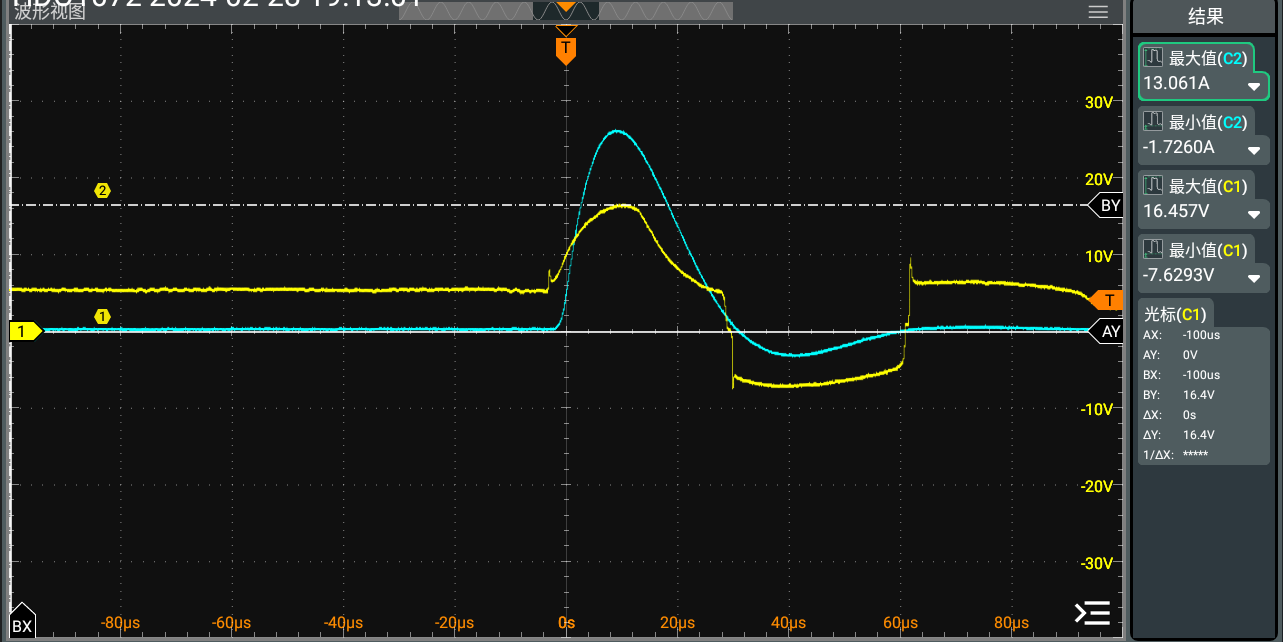

● 182 Watts Peak Pulse Power per Line (tp=8/20µs) IPP 13A
● Protects One Bidirectional I/O Line
● Low clamping voltage
● Working voltages : 3.3V
● Low leakage current
● IEC61000-4-2(ESD) ±30kV (air discharge) ±30kV (contact discharge)
● Junction capacitance 1.2PF(tp=1MHz)
ESD3.3V88D-LC is a high-performance ESD and surge protection TVS transistor with high electrostatic resistance and excellent surge resistance, which can effectively protect the back-end circuit from damage. The characteristics of low reverse leakage and low capacitance value make it more widely used in application scenarios, such as RJ45, I/O and other signal lines, and 3.3V and below power line protection.
ESD3.3V88D-LC.pdf
