Package

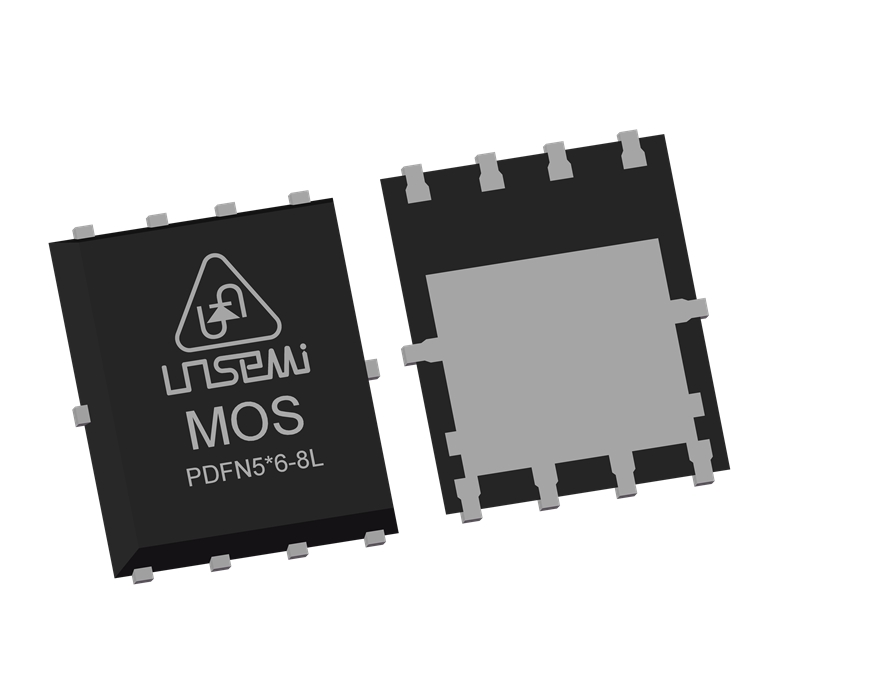

PDFN5*6-8L
Type
NMOS
VDS (V)
40
VGS (V)
±20
VTH (MIN) (V)
1.0
VTH (MAX) (V)
2.5
ID @25°C (A)
156
RDS(ON) @VGS=10V Typ(mΩ)
1.2
RDS(ON) @VGS=10V Max(mΩ)
1.9
RDS(ON) @VGS=4.5V Typ.(mΩ)
1.7
RDS(ON) @VGS=4.5V Max(mΩ)
ESD
NO
AEC-Q101
UN0415N1R2-PD56.pdf
