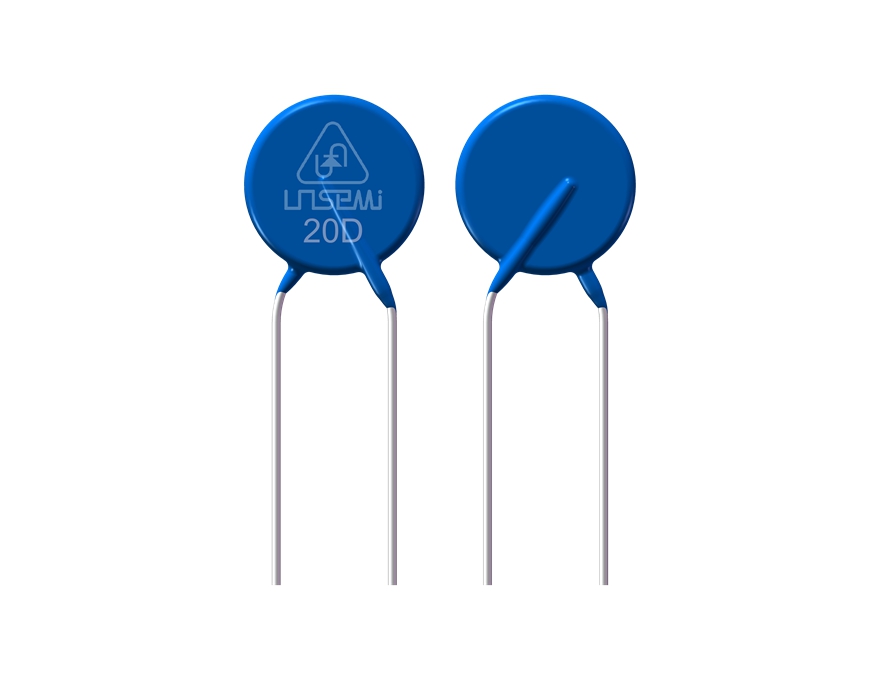

Package | disc 20mm |
Maximum Allowable Voltage Vac(V) | 190 |
Maximum Allowable Voltage Vdc(V) | 250 |
Varistor Voltage @1mA (V) | 300(270-330) |
Max Peak Current@ 8/20µs | 6500 |
Number of lighting @Max Peak Current 8/20µs | 1 |
Max Clamping Voltage@Ip Vc(V) | 505@100A |
Maximum Energy (10/1000µs) （J） | 136 |
