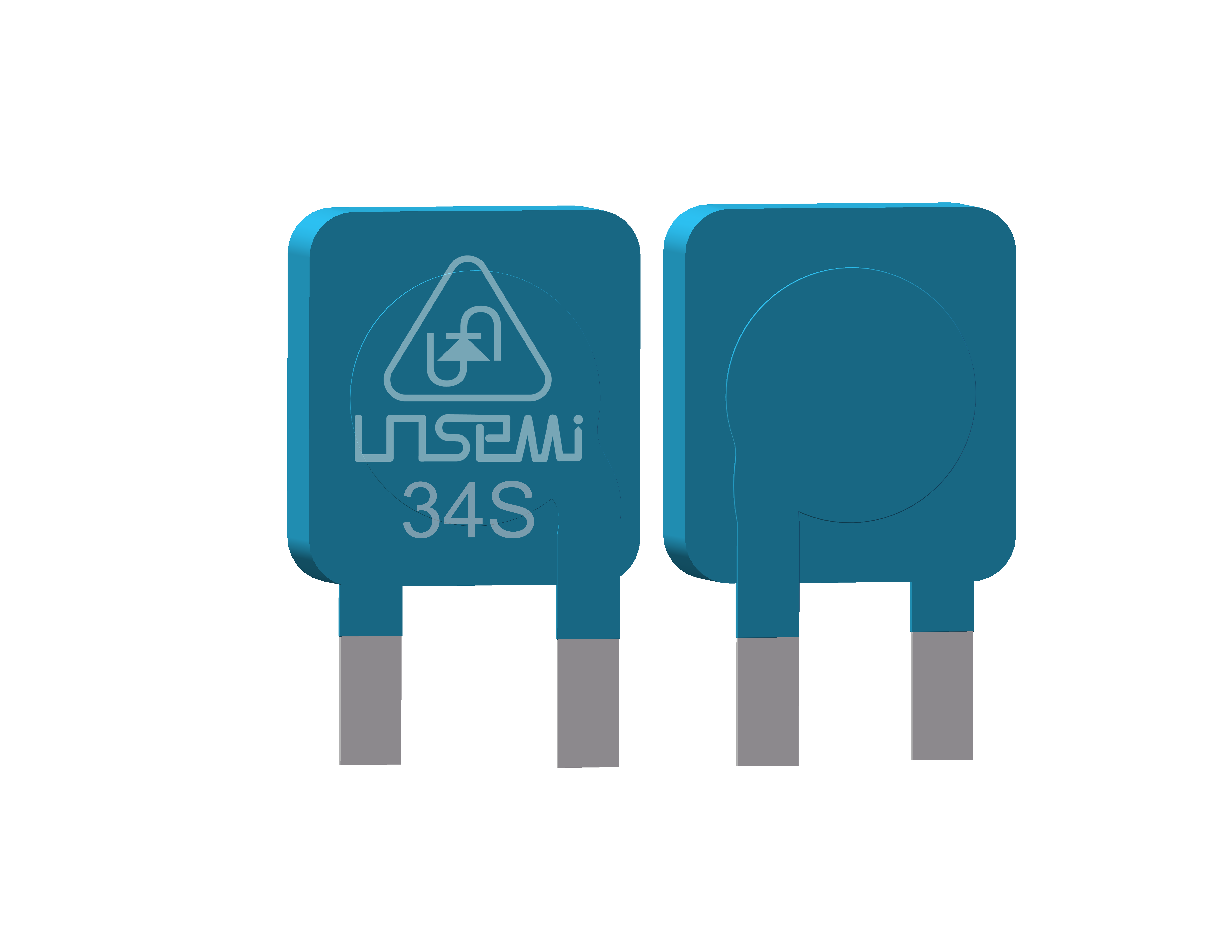

Package | square 34mm |
Maximum Allowable Voltage Vac(V) | 210 |
Maximum Allowable Voltage Vdc(V) | 275 |
Varistor Voltage @1mA (V) | 330(297-363) |
Max Peak Current@ 8/20µs | 50000 |
Number of lighting @Max Peak Current 8/20µs | 1 |
Max Clamping Voltage@Ip Vc(V) | 550@300A |
Maximum Energy (10/1000µs) （J） | 550 |
34S Series.pdf
