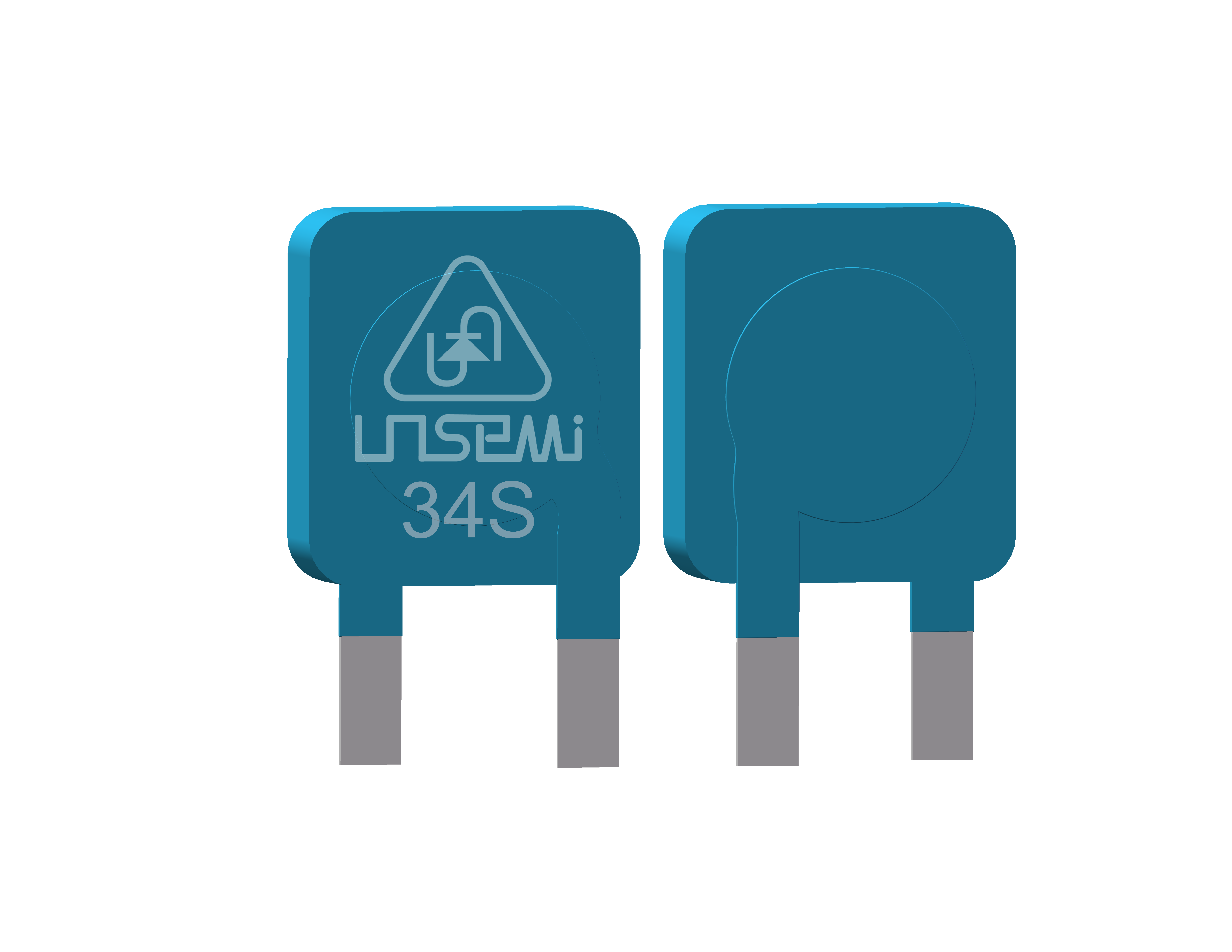

Package | square 34mm |
Maximum Allowable Voltage Vac(V) | 555 |
Maximum Allowable Voltage Vdc(V) | 745 |
Varistor Voltage @1mA (V) | 910(819-1001) |
Max Peak Current@ 8/20µs | 50000 |
Number of lighting @Max Peak Current 8/20µs | 1 |
Max Clamping Voltage@Ip Vc(V) | 1500@300A |
Maximum Energy (10/1000µs) （J） | 1155 |
34S Series.pdf
