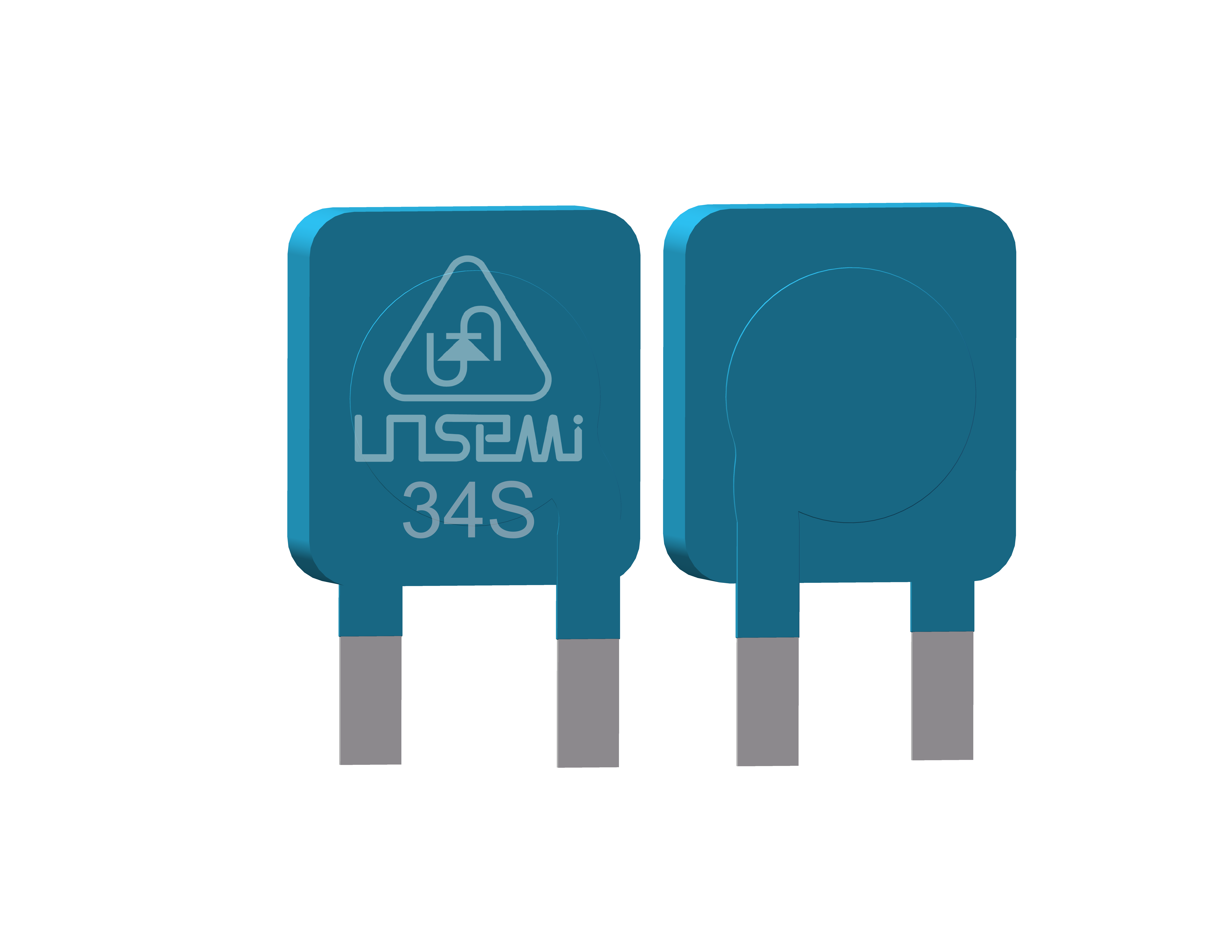

Package | square 34mm |
Maximum Allowable Voltage Vac(V) | 880 |
Maximum Allowable Voltage Vdc(V) | 1140 |
Varistor Voltage @1mA (V) | 1400(1260-1540) |
Max Peak Current@ 8/20µs | 40000 |
Number of lighting @Max Peak Current 8/20µs | 1 |
Max Clamping Voltage@Ip Vc(V) | 2310@300A |
Maximum Energy (10/1000µs) （J） | 1400 |
34S Series.pdf
