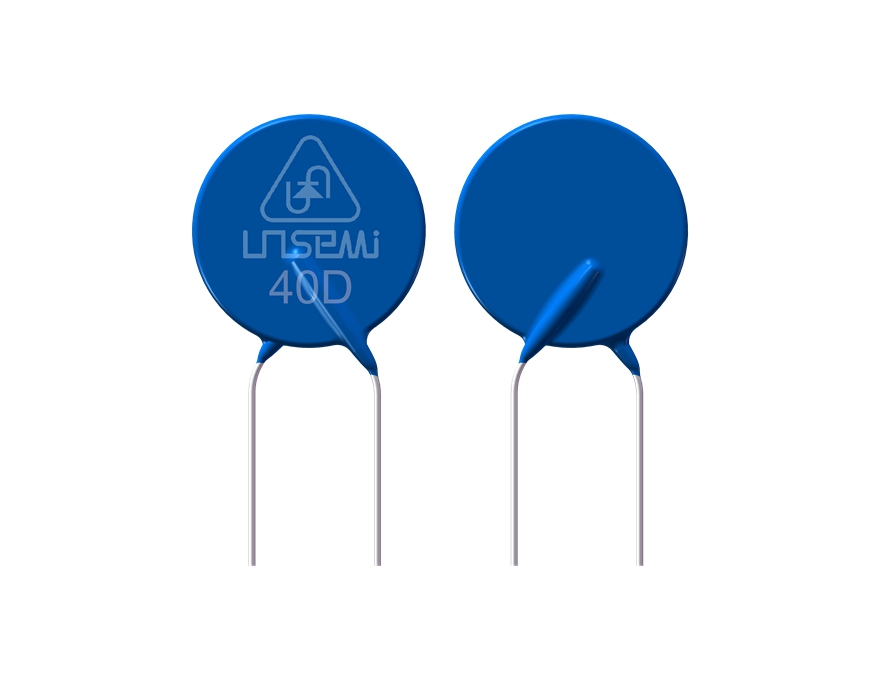

Package | disc 40mm |
Maximum Allowable Voltage Vac(V) | 300 |
Maximum Allowable Voltage Vdc(V) | 385 |
Varistor Voltage @1mA (V) | 470(423-517) |
Max Peak Current@ 8/20µs | 40000 |
Number of lighting @Max Peak Current 8/20µs | 1 |
Max Clamping Voltage@Ip Vc(V) | 775@300A |
Maximum Energy (10/1000µs) （J） | 720 |
40D Series.pdf
