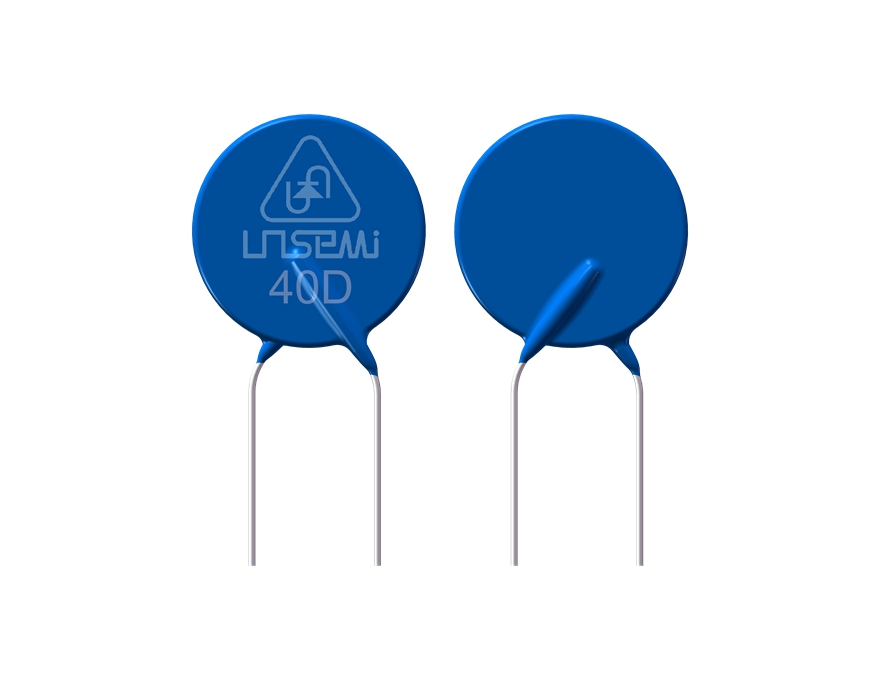

Package | disc 40mm |
Maximum Allowable Voltage Vac(V) | 510 |
Maximum Allowable Voltage Vdc(V) | 670 |
Varistor Voltage @1mA (V) | 820(738-902) |
Max Peak Current@ 8/20µs | 50000 |
Number of lighting @Max Peak Current 8/20µs | 1 |
Max Clamping Voltage@Ip Vc(V) | 1355@300A |
Maximum Energy (10/1000µs) （J） | 1188 |
40D Series.pdf
