Package

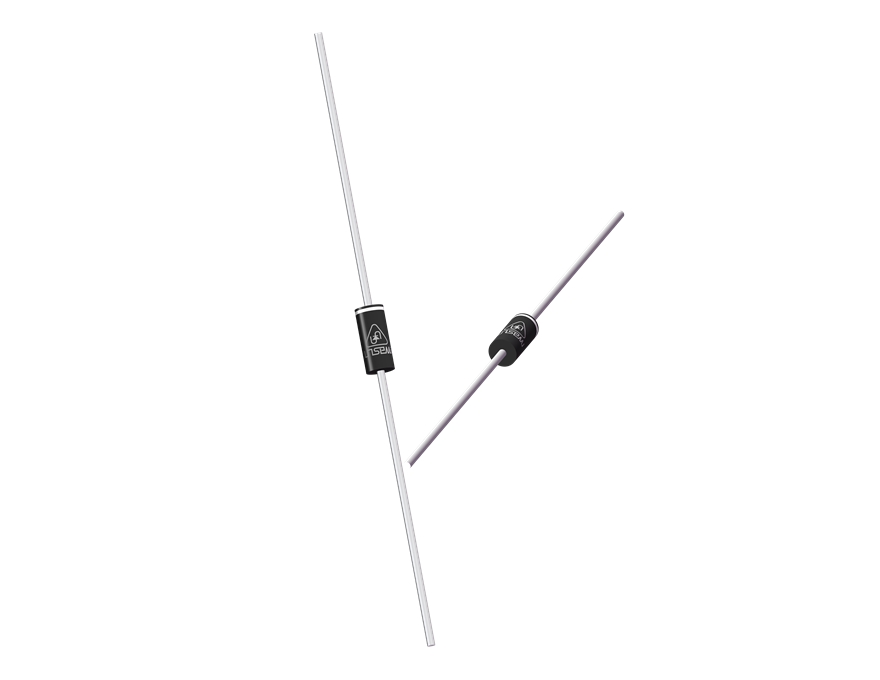

DO-15/DO-204AC
Pppm@ 10/1000μs (W)
500
VRWM Max. (V)
11
VBR@IT Min. (V)
12.2
VBR@IT Max. (V)
14.9
IT (mA)
1
VC@IPP Max. (V)
20.1
IPP@Max 10/1000μs (A)
24.88
IR@VRWM Max. (uA)
5
AEC-Q101
NO
SA Series.pdf
