Package

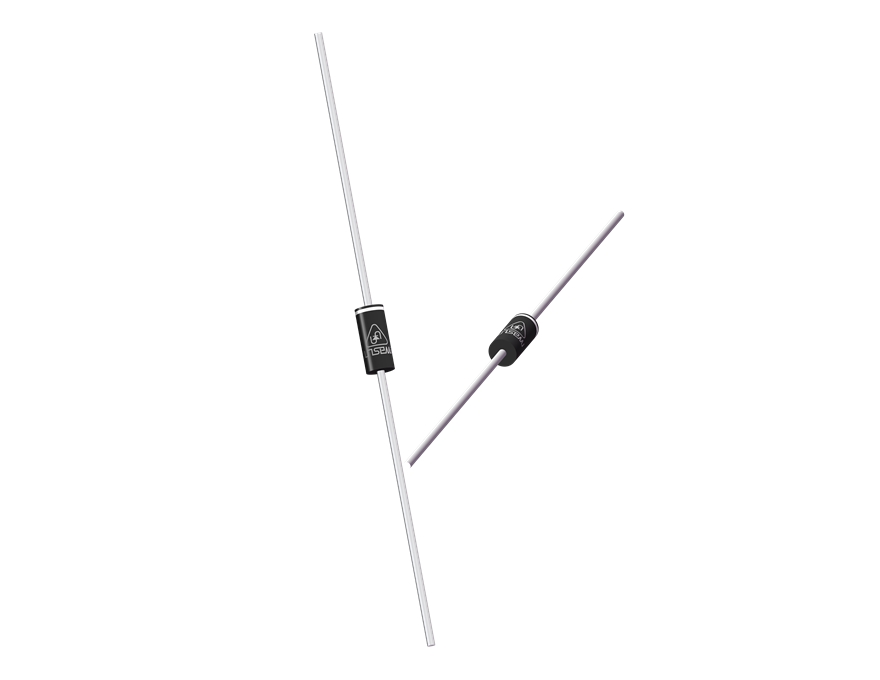

DO-15/DO-204AC
Pppm@ 10/1000μs (W)
500
VRWM Max. (V)
30
VBR@IT Min. (V)
33.3
VBR@IT Max. (V)
36.8
IT (mA)
1
VC@IPP Max. (V)
48.4
IPP@Max 10/1000μs (A)
10.33
IR@VRWM Max. (uA)
5
AEC-Q101
NO
SA Series.pdf
