Package

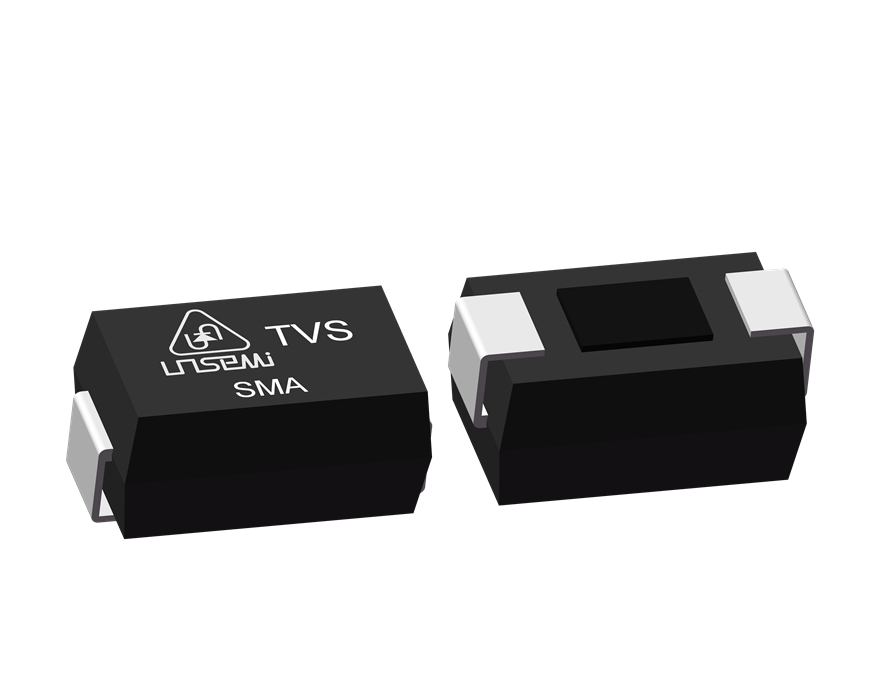

SMA/DO-214AC
Pppm@ 10/1000μs (W)
400
VRWM Max. (V)
15
VBR@IT Min. (V)
16.7
VBR@IT Max. (V)
18.5
IT (mA)
1
VC@IPP Max. (V)
24.4
IPP@Max 10/1000μs (A)
16.39
IR@VRWM Max. (uA)
AEC-Q101
NO
SMAJ Series.pdf
