SMAJ33

Datasheet

SMAJ Series.pdf

Product Details

Parameter
Packaging | Dimensions
Characteristic

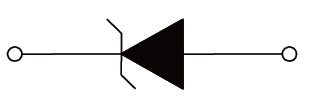

Illustrate

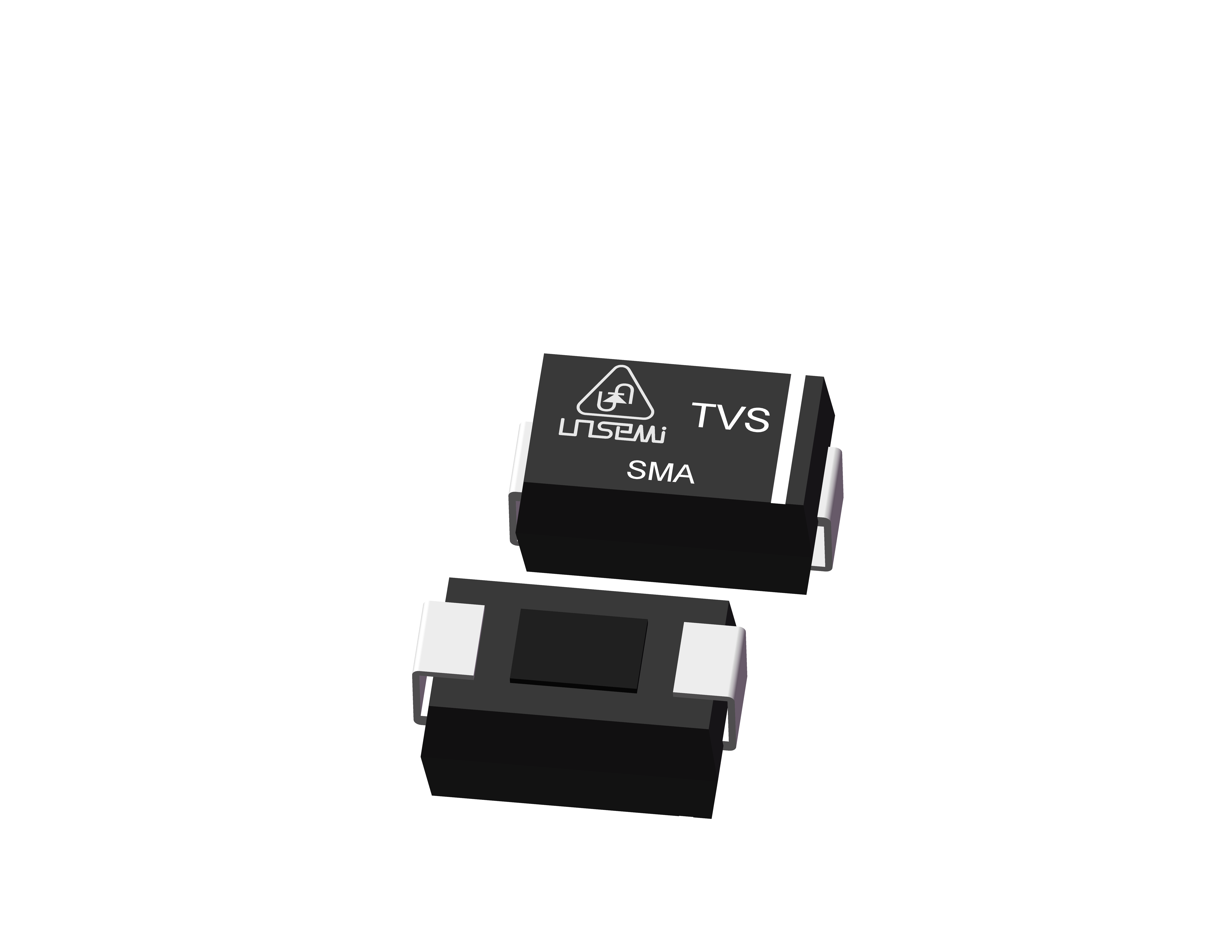

Package	SMA/DO-214AC
Pppm@ 10/1000μs (W)	400
VRWM Max. (V)	33
VBR@IT Min. (V)	36.7
VBR@IT Max. (V)	44.9
IT (mA)	1
VC@IPP Max. (V)	59
IPP@Max 10/1000μs (A)	6.78
IR@VRWM Max. (uA)	1
AEC-Q101	NO
