SMBJ120A-AT

Datasheet

SMBJ-AT Series.pdf

Product Details

Parameter
Packaging | Dimensions
Characteristic
Illustrate

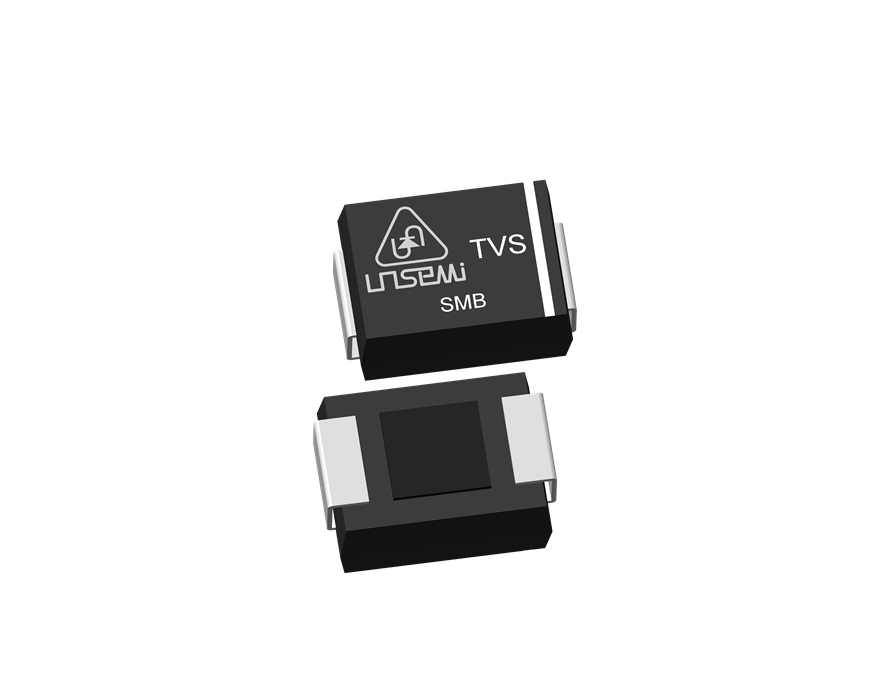

Package	SMB/DO-214AA
Pppm@ 10/1000μs (W)	600
VRWM Max. (V)	120
VBR@IT Min. (V)	133
VBR@IT Max. (V)	147
IT (mA)	1
VC@IPP Max. (V)	193
IPP@Max 10/1000μs (A)	3.1
IR@VRWM Max. (uA)	1
AEC-Q101	YES
