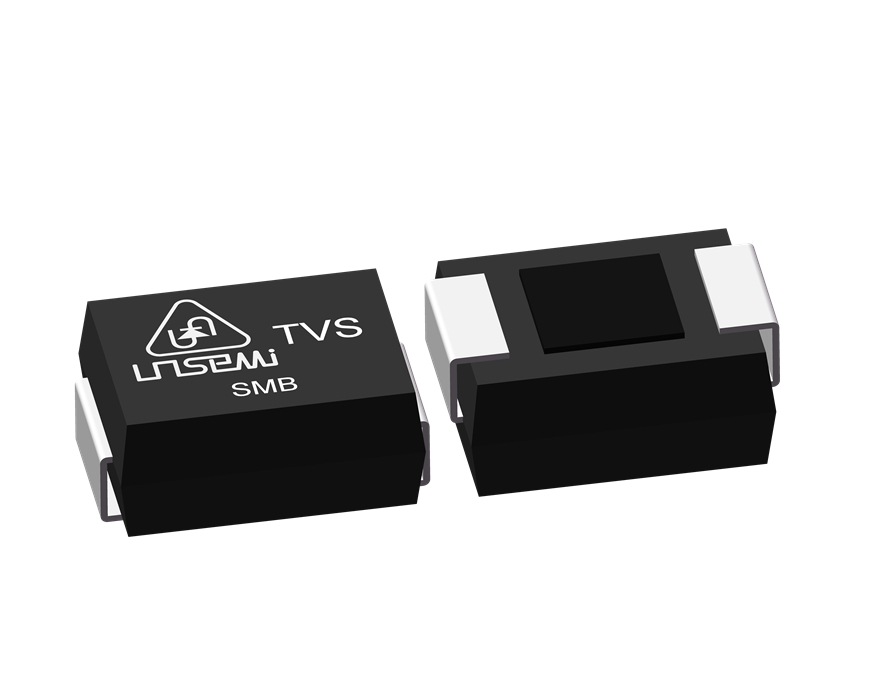

Package
SMB/DO-214AA
Pppm@ 10/1000μs (W)
600
VRWM Max. (V)
18
VBR@IT Min. (V)
20
VBR@IT Max. (V)
22.1
IT (mA)
1
VC@IPP Max. (V)
29.2
IPP@Max 10/1000μs (A)
20.55
IR@VRWM Max. (uA)
AEC-Q101
NO
SMBJ Series.pdf
