SMBJ58A

Datasheet

SMBJ Series.pdf

Product Details

Parameter
Packaging | Dimensions
Characteristic
Illustrate

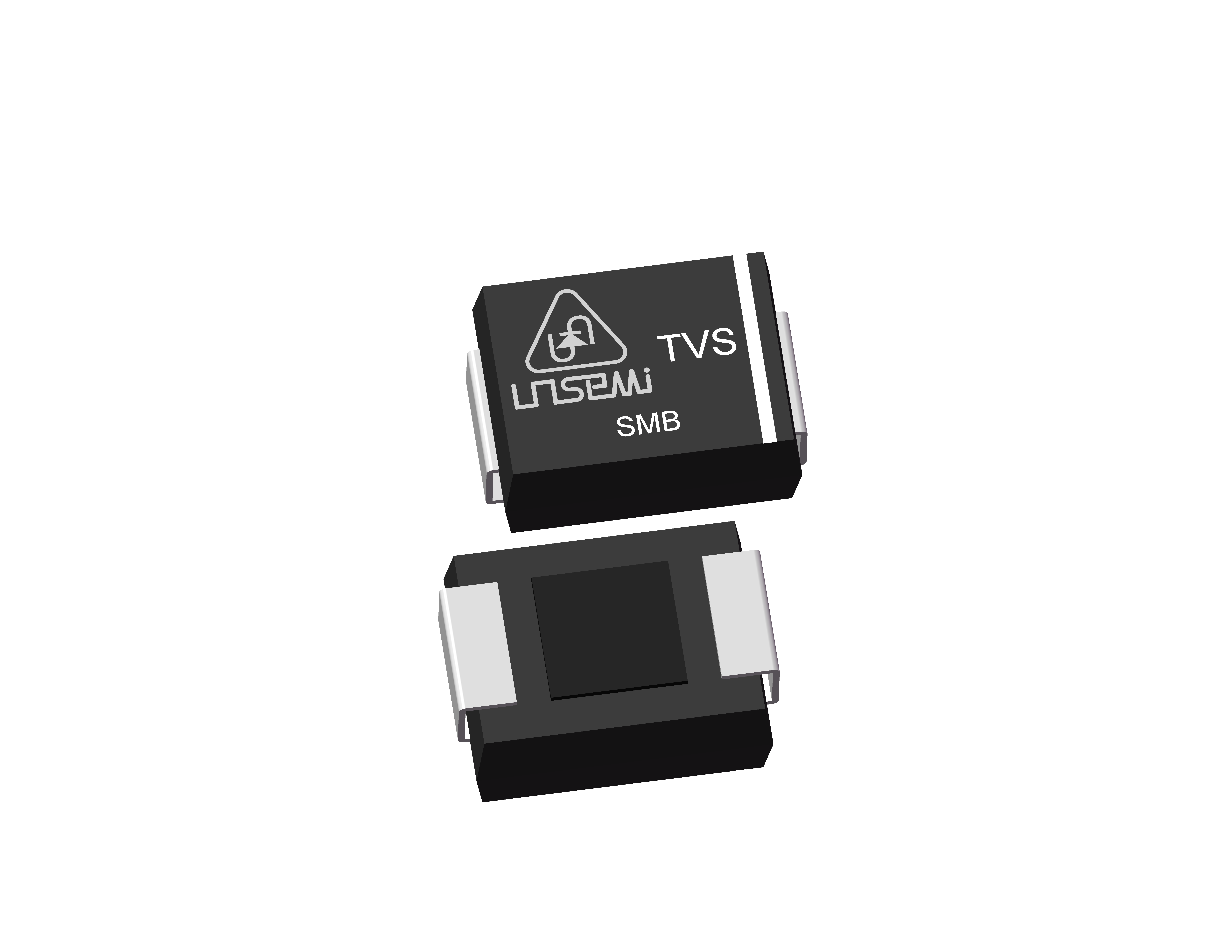

Package	SMB/DO-214AA
Pppm@ 10/1000μs (W)	600
VRWM Max. (V)	58
VBR@IT Min. (V)	64.4
VBR@IT Max. (V)	71.2
IT (mA)	1
VC@IPP Max. (V)	93.6
IPP@Max 10/1000μs (A)	6.41
IR@VRWM Max. (uA)	1
AEC-Q101	NO
