Package

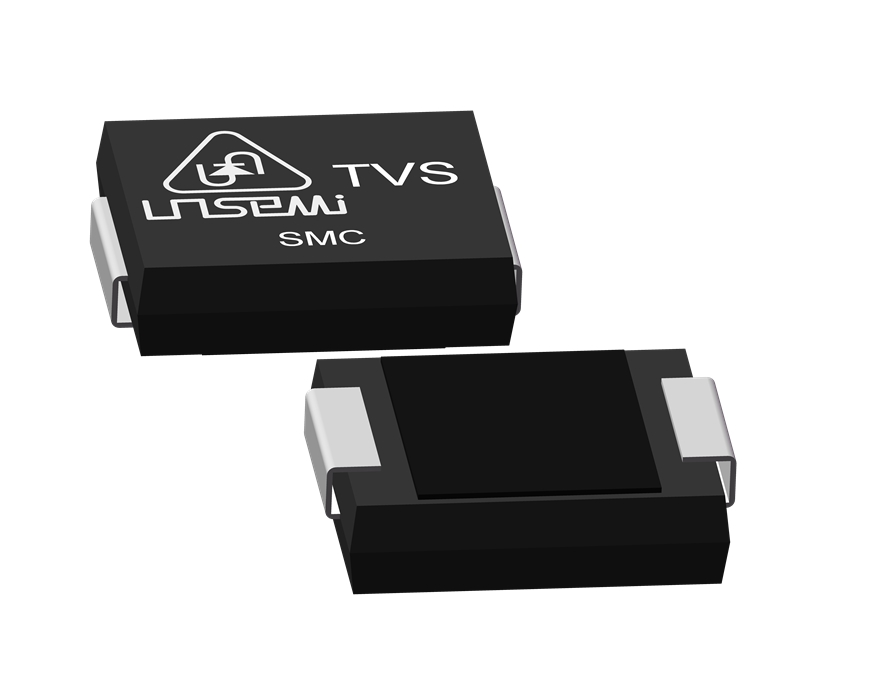

SMC/DO-214AB
Pppm@ 10/1000μs (W)
1500
VRWM Max. (V)
85
VBR@IT Min. (V)
94.4
VBR@IT Max. (V)
104
IT (mA)
1
VC@IPP Max. (V)
137
IPP@Max 10/1000μs (A)
10.95
IR@VRWM Max. (uA)
AEC-Q101
NO
SMCJ Series.pdf
