Package

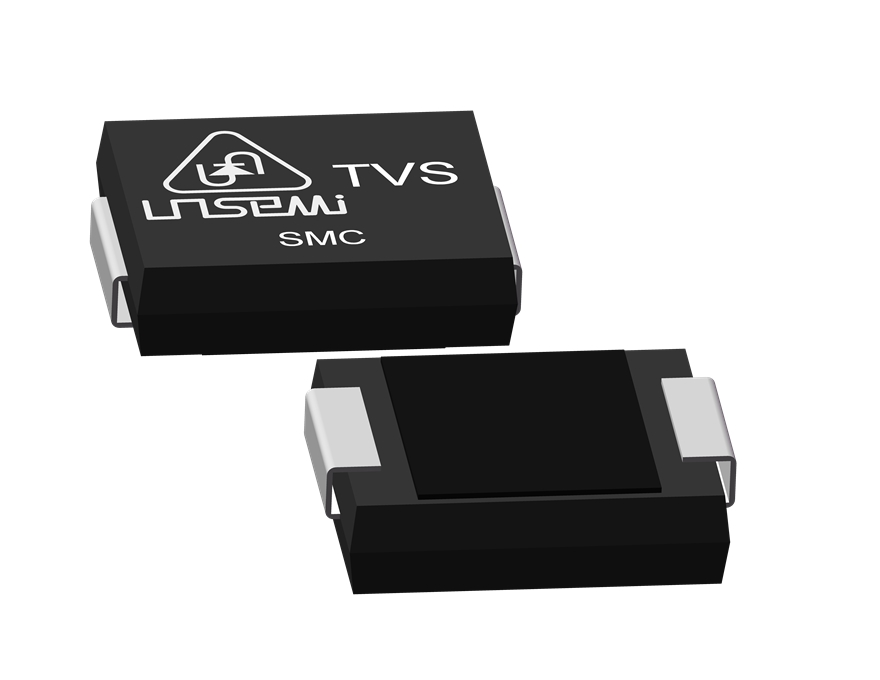

SMC/DO-214AB
Pppm@ 10/1000μs (W)
3000
VRWM Max. (V)
30.0
VBR@IT Min. (V)
33.3
VBR@IT Max. (V)
36.8
IT (mA)
1
VC@IPP Max. (V)
48.4
IPP@Max 10/1000μs (A)
64.98
IR@VRWM Max. (uA)
5.0
AEC-Q101
NO
SMDJ Series.pdf
