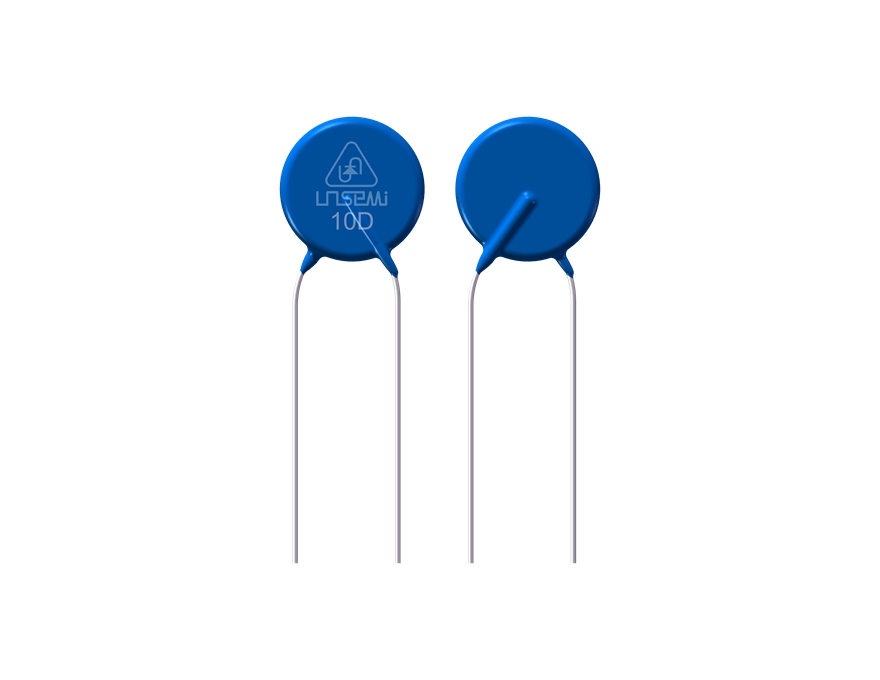

Package | disc 10mm |
Maximum Allowable Voltage Vac(V) | 50 |
Maximum Allowable Voltage Vdc(V) | 65 |
Varistor Voltage @1mA (V) | 82(73.8-90.2) |
Max Peak Current@ 8/20µs | 3500 |
Number of lighting @Max Peak Current 8/20µs | 1 |
Max Clamping Voltage@Ip Vc(V) | 135@25A |
Maximum Energy (10/1000µs) （J） | 17 |
10D Series.pdf
