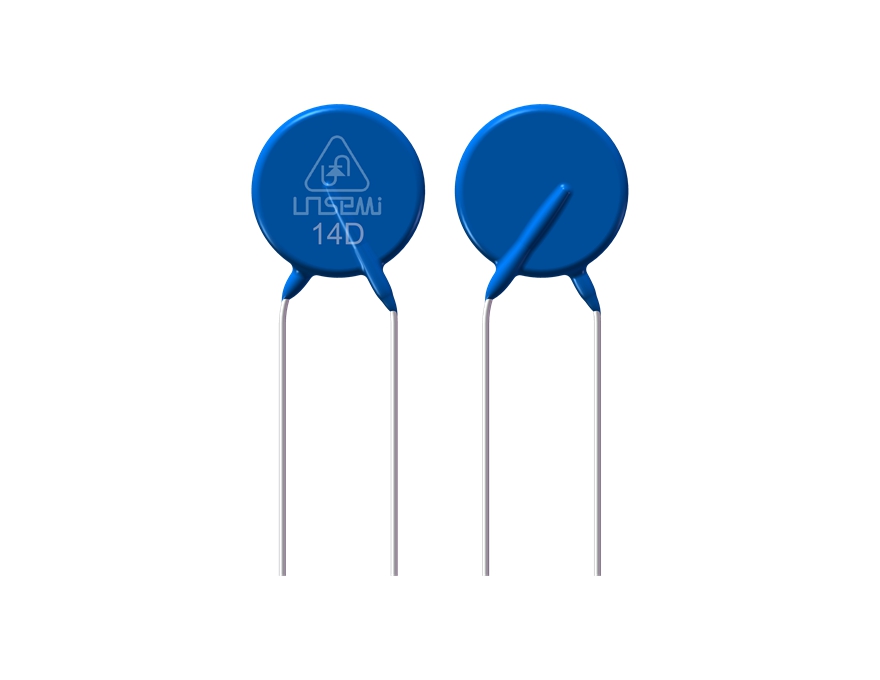

Package | disc 14mm |
Maximum Allowable Voltage Vac(V) | 115 |
Maximum Allowable Voltage Vdc(V) | 150 |
Varistor Voltage @1mA (V) | 180(162-198) |
Max Peak Current@ 8/20µs | 4500 |
Number of lighting @Max Peak Current 8/20µs | 1 |
Max Clamping Voltage@Ip Vc(V) | 300@50A |
Maximum Energy (10/1000µs) （J） | 50 |
14D Series.pdf
