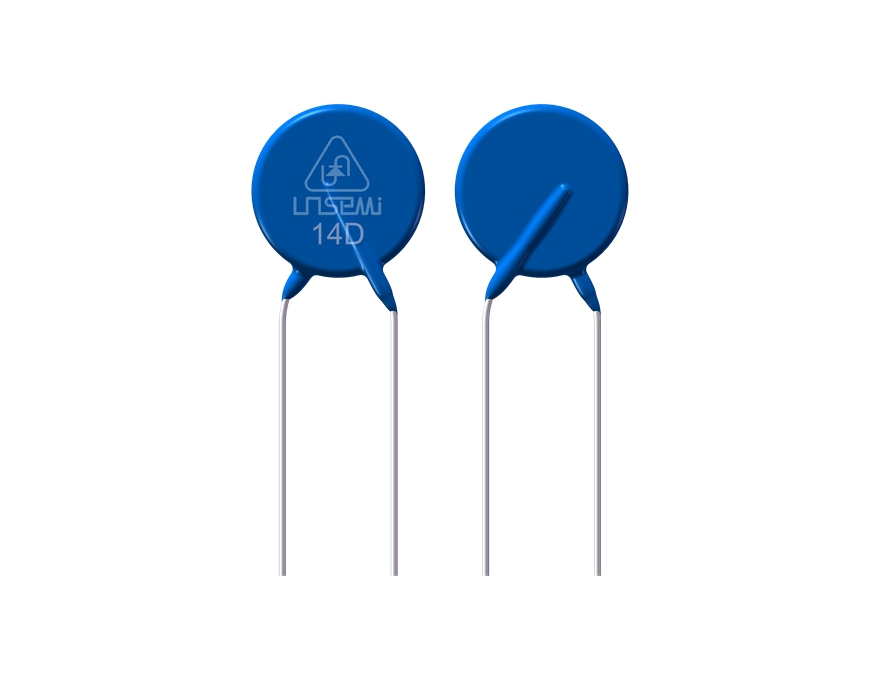

封裝類型 | disc 14mm |
Maximum Allowable Voltage Vac(V) | 350 |
Maximum Allowable Voltage Vdc(V) | 460 |
Varistor Voltage @1mA (V) | 560(504-616) |
Max Peak Current@ 8/20µs | 6KV/3KA |
Number of lighting @Max Peak Current 8/20µs | 40 |
Max Clamping Voltage@Ip Vc(V) | 920@25A |
Maximum Energy (10/1000µs) （J） | 185 |
14DSC Series.pdf
