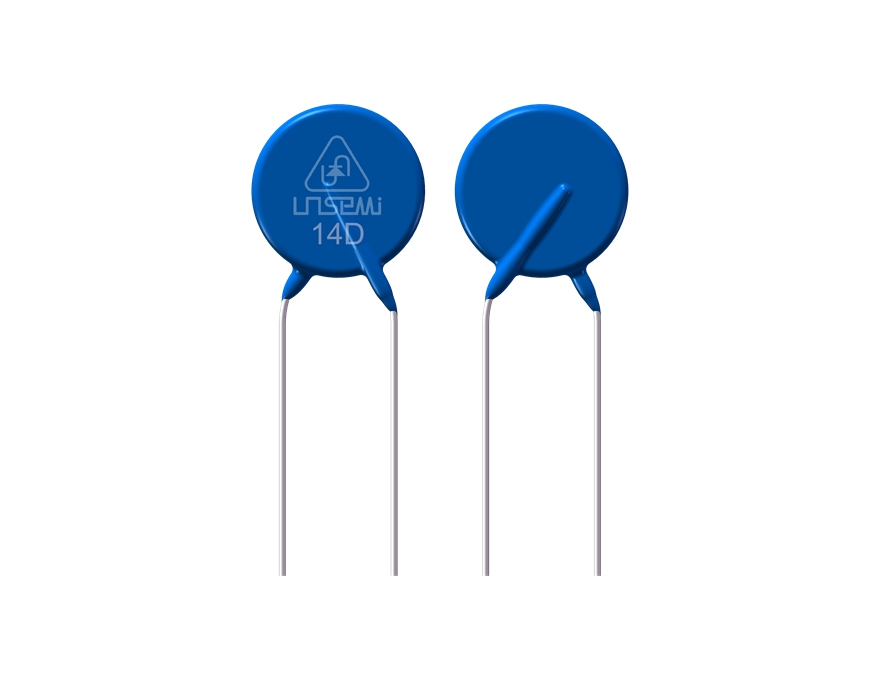

Package | disc 14mm |
Maximum Allowable Voltage Vac(V) | 40 |
Maximum Allowable Voltage Vdc(V) | 56 |
Varistor Voltage @1mA (V) | 68(61.2-74.8) |
Max Peak Current@ 8/20µs | 2000 |
Number of lighting @Max Peak Current 8/20µs | 1 |
Max Clamping Voltage@Ip Vc(V) | 135@10A |
Maximum Energy (10/1000µs) （J） | 24 |
14D Series.pdf
