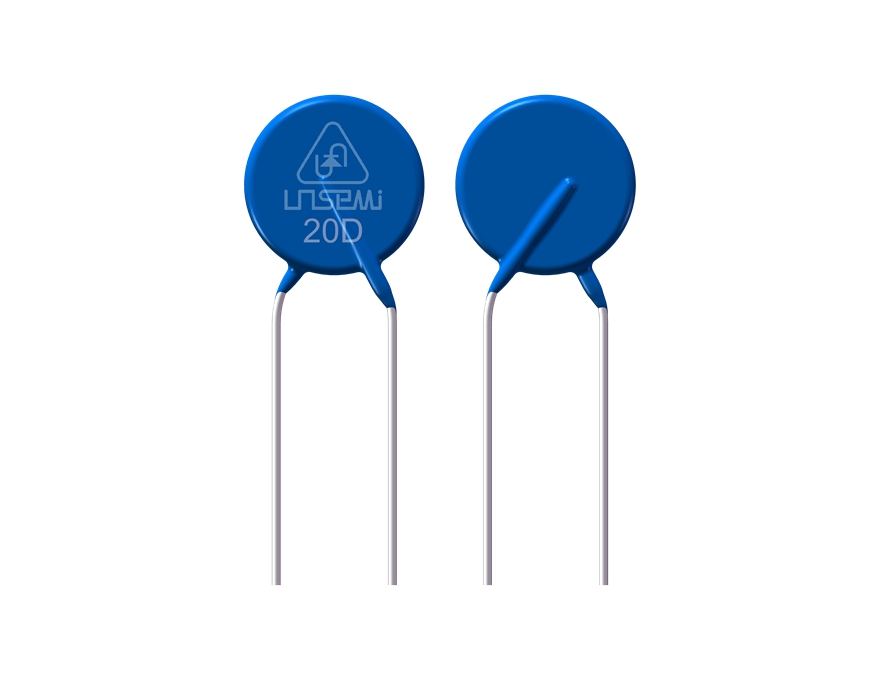

Package | disc 20mm |
Maximum Allowable Voltage Vac(V) | 95 |
Maximum Allowable Voltage Vdc(V) | 125 |
Varistor Voltage @1mA (V) | 150(135-165) |
Max Peak Current@ 8/20µs | 6500 |
Number of lighting @Max Peak Current 8/20µs | 1 |
Max Clamping Voltage@Ip Vc(V) | 250@100A |
Maximum Energy (10/1000µs) （J） | 77 |
20D Series.pdf
