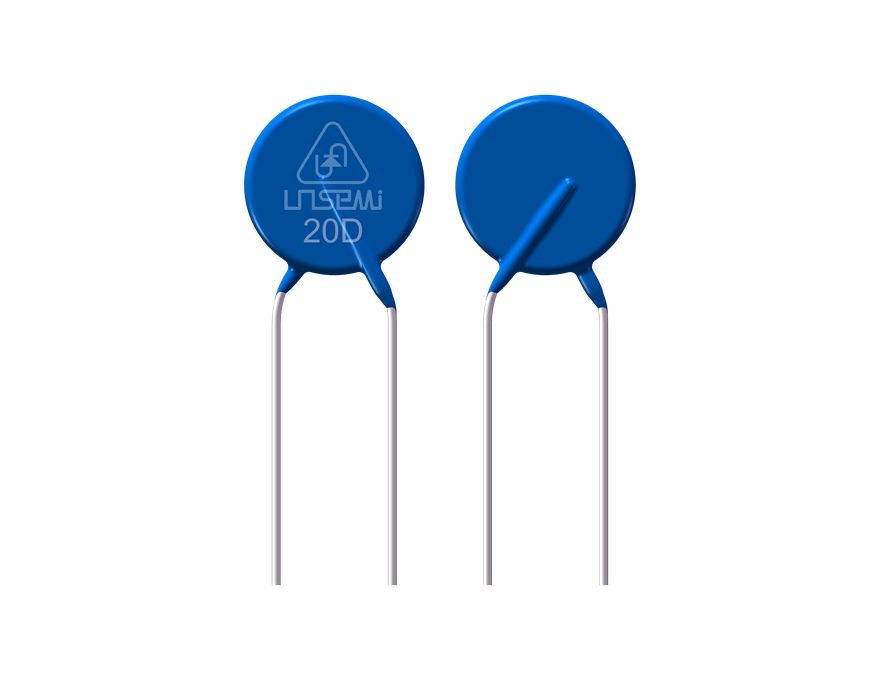

Package | disc 20mm |
Maximum Allowable Voltage Vac(V) | 35 |
Maximum Allowable Voltage Vdc(V) | 45 |
Varistor Voltage @1mA (V) | 56(50.4-61.6) |
Max Peak Current@ 8/20µs | 4000 |
Number of lighting @Max Peak Current 8/20µs | 1 |
Max Clamping Voltage@Ip Vc(V) | 110@20A |
Maximum Energy (10/1000µs) （J） | 19.6 |
20D Series.pdf
