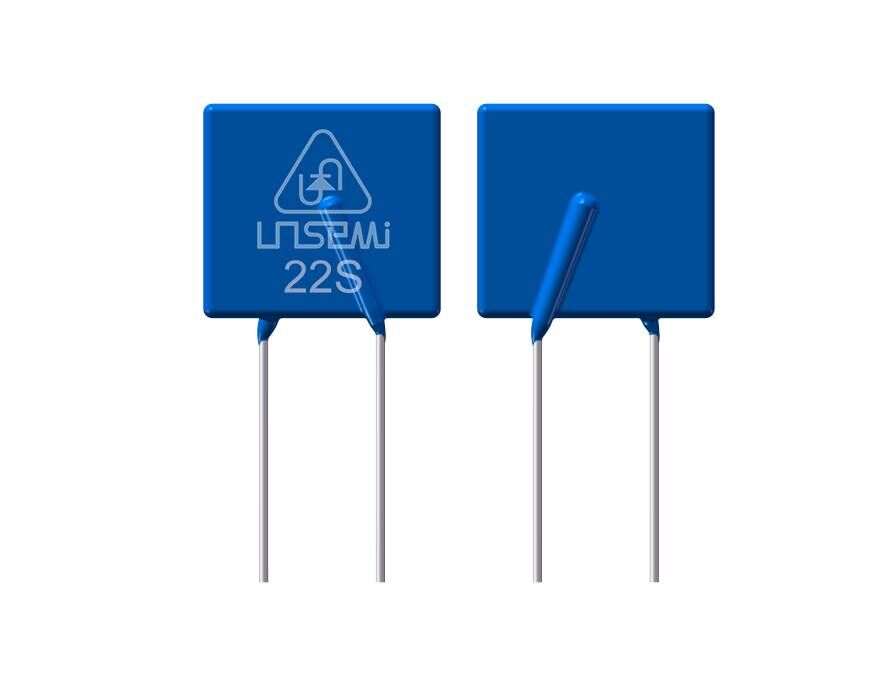

Package | square 22mm |
Maximum Allowable Voltage Vac(V) | 150 |
Maximum Allowable Voltage Vdc(V) | 200 |
Varistor Voltage @1mA (V) | 240(216-264) |
Max Peak Current@ 8/20µs | 20000 |
Number of lighting @Max Peak Current 8/20µs | 1 |
Max Clamping Voltage@Ip Vc(V) | 395@150A |
Maximum Energy (10/1000µs) （J） | 220 |
22S Series.pdf
