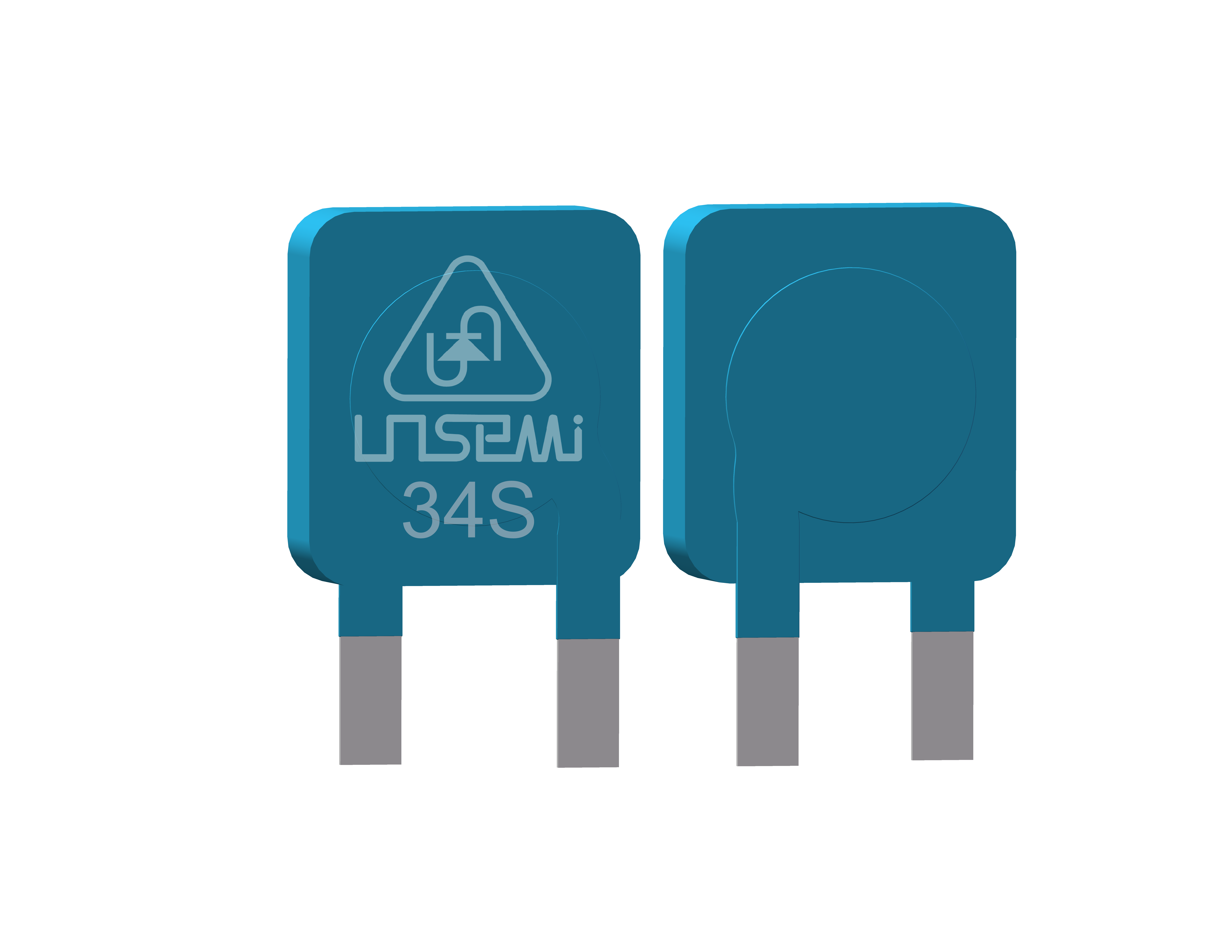

Package | square 34mm |
Maximum Allowable Voltage Vac(V) | 1000 |
Maximum Allowable Voltage Vdc(V) | 1280 |
Varistor Voltage @1mA (V) | 1600(1400-1760) |
Max Peak Current@ 8/20µs | 50000 |
Number of lighting @Max Peak Current 8/20µs | 1 |
Max Clamping Voltage@Ip Vc(V) | 2475@300A |
Maximum Energy (10/1000µs) （J） | 1650 |
34S Series.pdf
