Package | DFN0603 |
VRWM Max. (V) | 5.0 |
VBR Min. (V) | 6.0 |
Vc @1A （V） | 12.0 |
IPP Max. (A) | 3.0 |
CJ@ 1MHZ (PF) | 0.5 |
IR@VRWM Max. (uA) | 1.0 |
Protectable Lines | 1 |
AEC-Q101 | NO |
● Working voltage 5V
● Bidirectional ESD Protection of one line
● Low Capacitance 0.5 pF （Typ）
● Surge protection:
IEC 61000-4-5 (8/20μs) 3A
● Ultra small SMD special packages :
DFN0603
● ESD protection to IEC61000-4-2(ESD):
±15kV (air discharge) ±8kV (contact discharge)

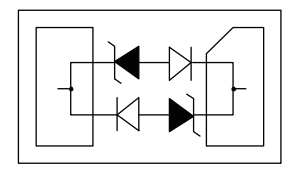

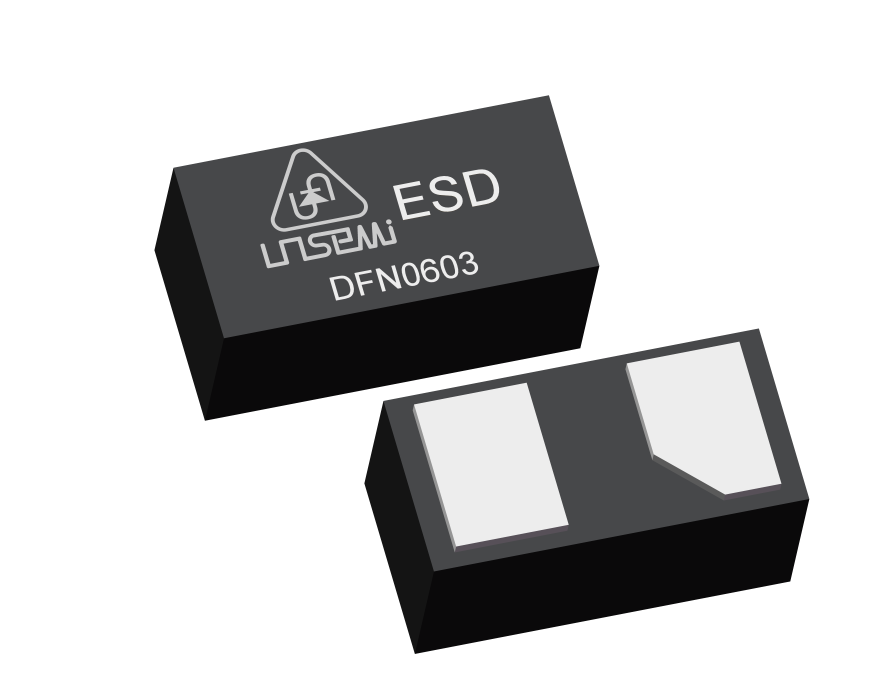

The ESD05V02D-LC is an ultra-small package overvoltage protection device that is ideal for surge overvoltage and ESD protection in PCB space-constrained products (TWS smart wearables), and its ultra-low capacitance value (0.5pF) can meet the requirements of high-speed signal lines without affecting signal transmission.
ESD05V02D-LC.pdf
