Work Voltage    24V

IEC61000-4-2(ESD)   Air  ±15KV  Contact   ±8KV

Low Capacitance     0.25PF

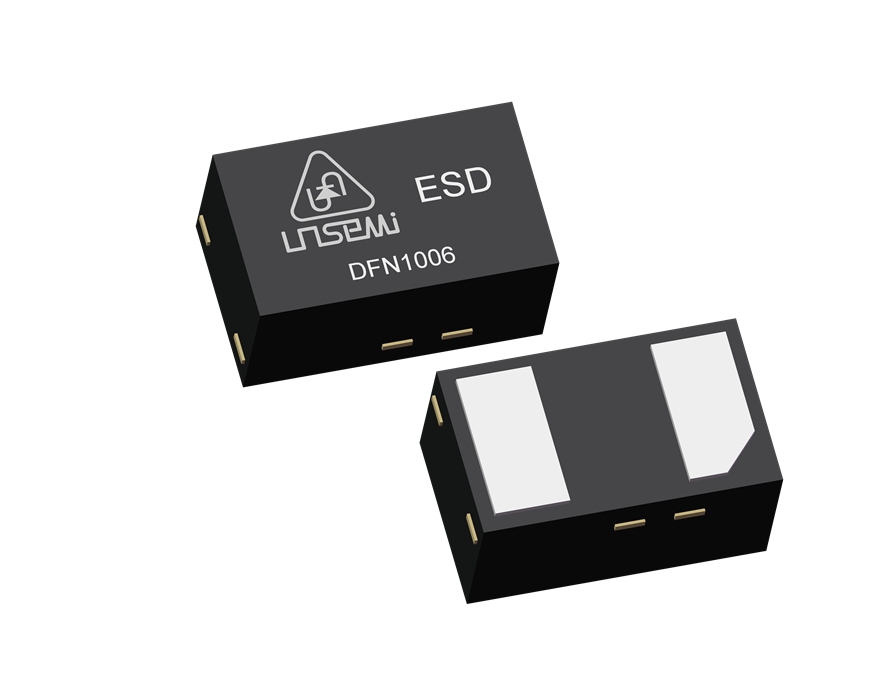

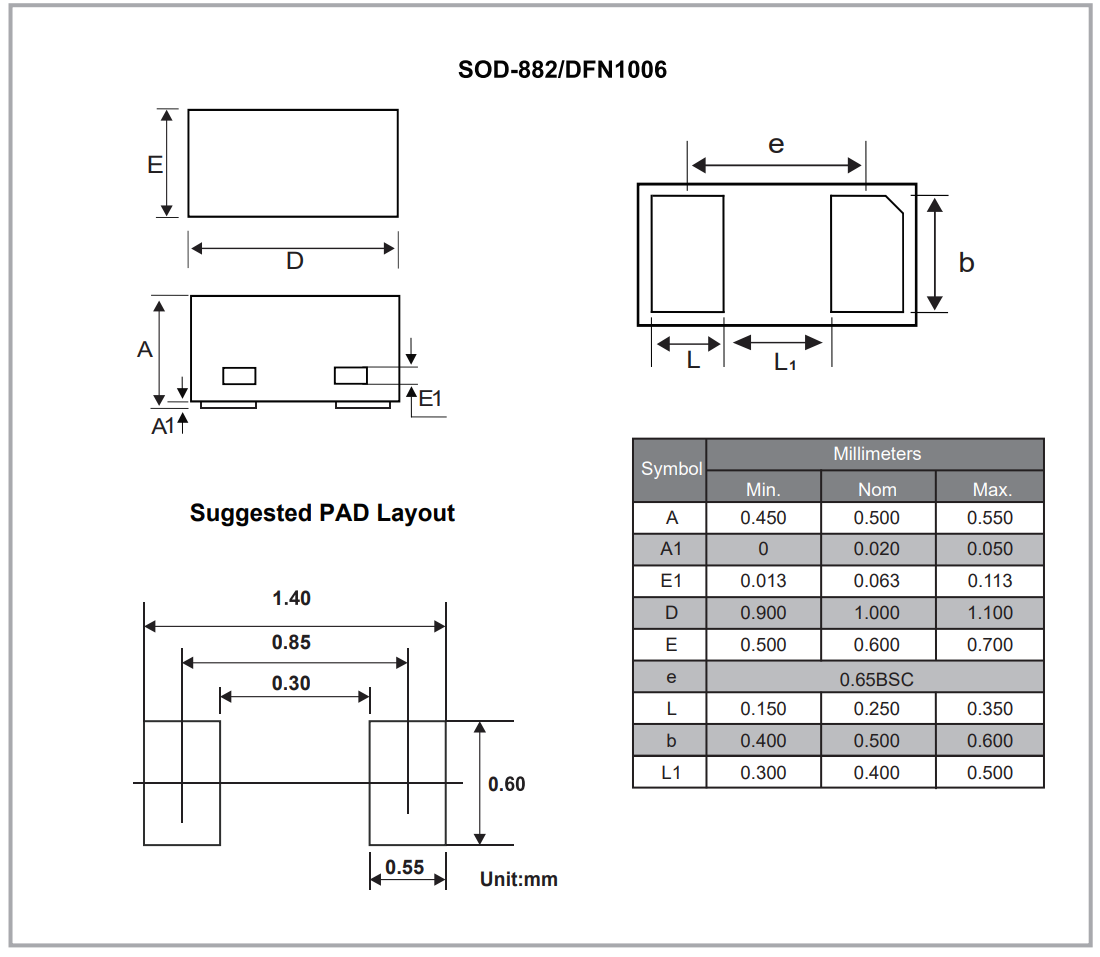

Small Size   DFN1006

Low Reverse Leakage Current

In view of the characteristics of today's RF chips, with high operating frequency and high output and input power, the

requirements for ESD (electrostatic discharge) protection are more stringent.

In this case, it is important to choose a suitable protection device.

Uen Corporation launches TVS ESD24V88D-ULC

As an ESD protection device designed for high frequency and high operating voltage

features:

Extremely low capacitance: This is important for RF communications, as low capacitance reduces the impact on RF signals.

Operating Voltage Support 24V: The TVS supports an operating voltage of up to 24V, which can effectively protect the RF

chip while supporting high-power signals.

Excellent antistatic ability: It can effectively absorb and suppress ESD/EOS.
