Package

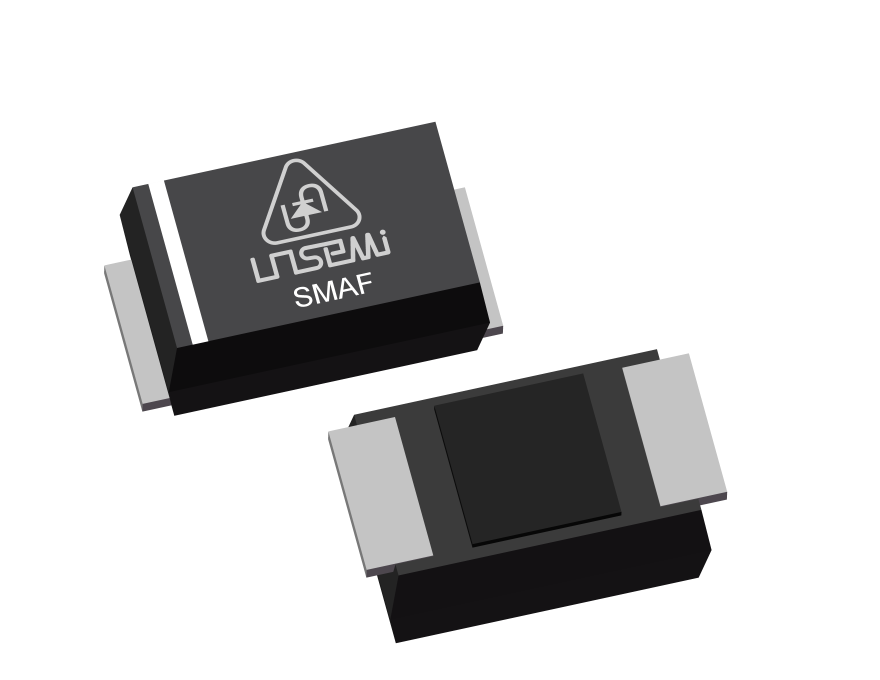

SMAF
Max. Average Rectified Current IF (A)
1
Max. Peak Reverse Voltage VRRM (V)
1000
Max.Peak Forward Surge Current IFSM (A)
30
Max. Forward Voltage VF@IF (V)
1.3
Max Reverse Current IR@VRRM（uA）
5
Max. Reverse Recovery Time Trr (ns)
500
