Package

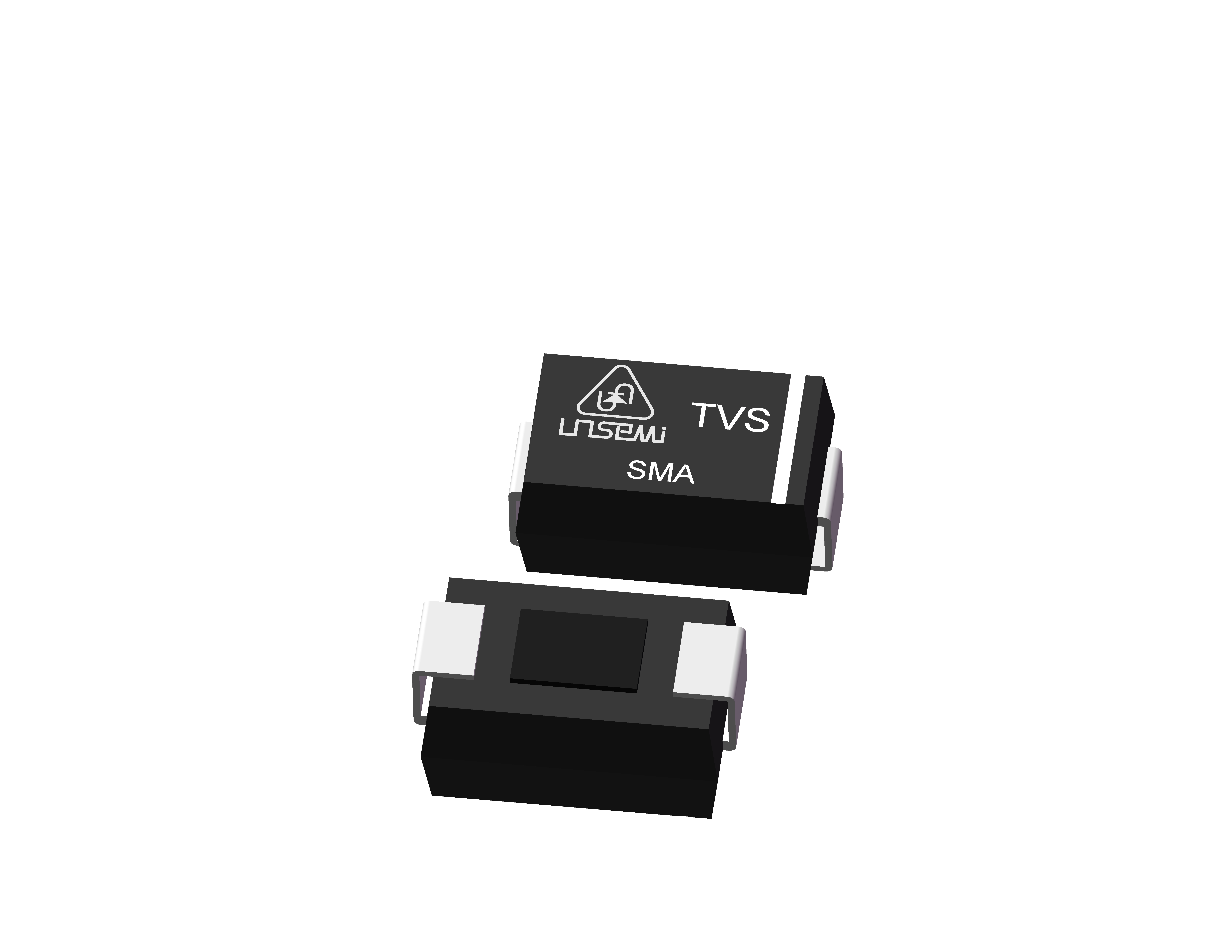

DO-214AC
Pppm@ 10/1000μs (W)
500
VRWM Max. (V)
22
VBR Min. (V)
24.40
VBR@IT Max. (V)
/
IT (mA)
1.0
VC@IPP Max. (V)
35.4
IPP@Max 10/1000μs (A)
14.0
IR@VRWM Max. (uA)
5.0
AEC-Q101
NO
SACA Series.pdf
