Package

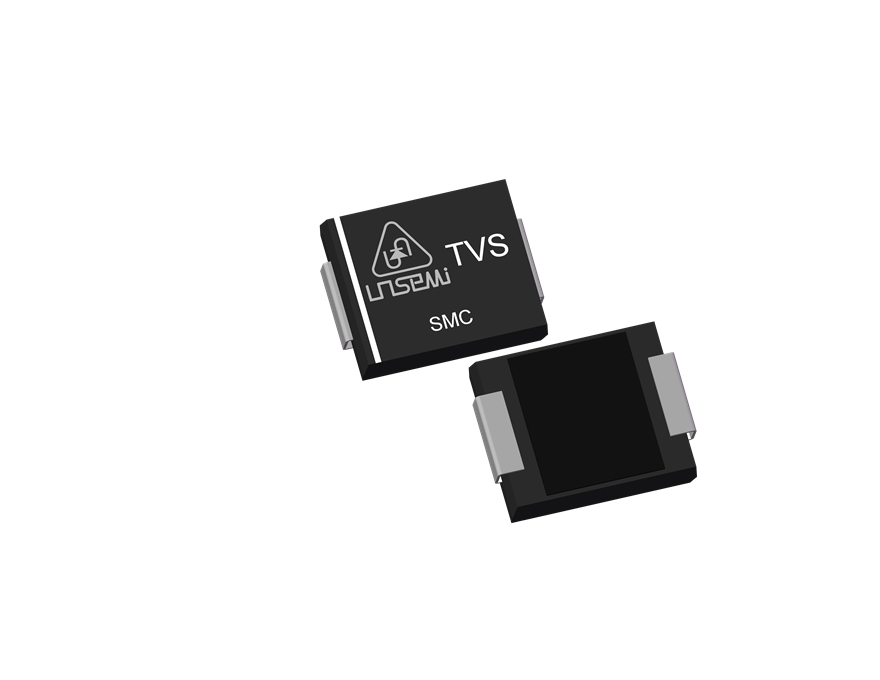

SMC/DO-214AB
Pppm@ 10/1000μs (W)
3000
VRWM Max. (V)
70.0
VBR@IT Min. (V)
77.8
VBR@IT Max. (V)
86
IT (mA)
1
VC@IPP Max. (V)
443
IPP@Max 10/1000μs (A)
24
IR@VRWM Max. (uA)
5.0
AEC-Q101
NO
SMDJ Series.pdf
