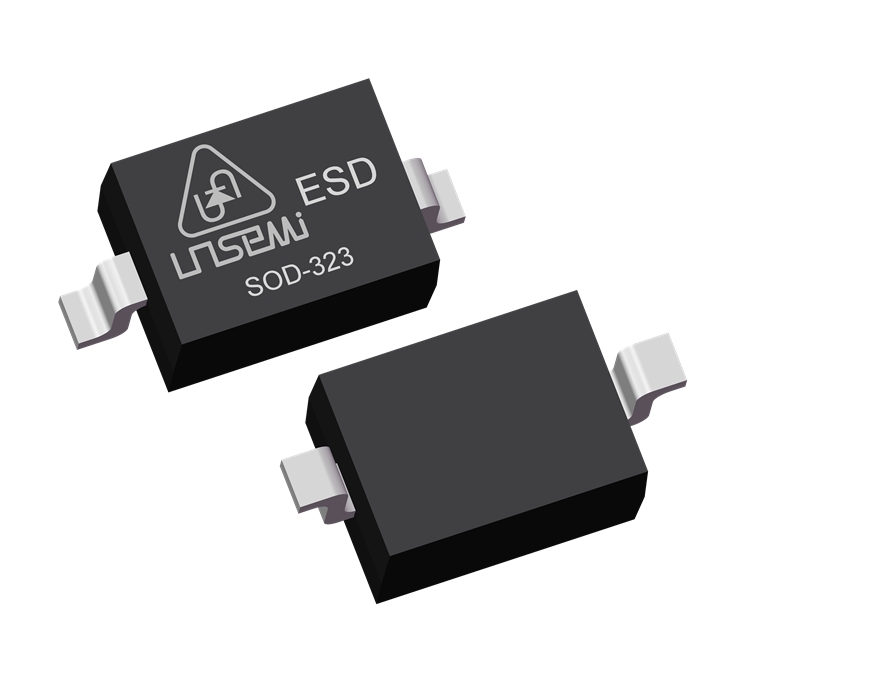

Package | SOD-323 |
VRWM Max. (V) | 15/24 |
VBR Min. (V) | 16.7/26.7 |
Vc @1A （V） | 25/43 |
IPP Max. (A) | 5.0/3.0 |
CJ@ 1MHZ (PF) | 1.0 |
IR@VRWM Max. (uA) | 1.0 |
Protectable Lines | 1 |
AEC-Q101 | NO |
● AEC-Q101 qualified
● Moisture Sensitivity Level (MSL -1)
●Protects of one automotive LIN-bus line
●Protects the one line DC12V or DC24V
●Low clamping voltage
●Low leakage current
●IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
●IEC61000-4-5 (Lightning) 3A (8/20µs)
In order to adapt to the 12V system of passenger cars and
the 24V power supply system of commercial vehicles, the
bilateral asymmetric voltage structure is UESD1LIN adopted,
which can meet the protection applications of two types of
automotive LIN-BUS, and can also be applied to DC12V and
DC24V power supply protection.
UESD1LIN.pdf
