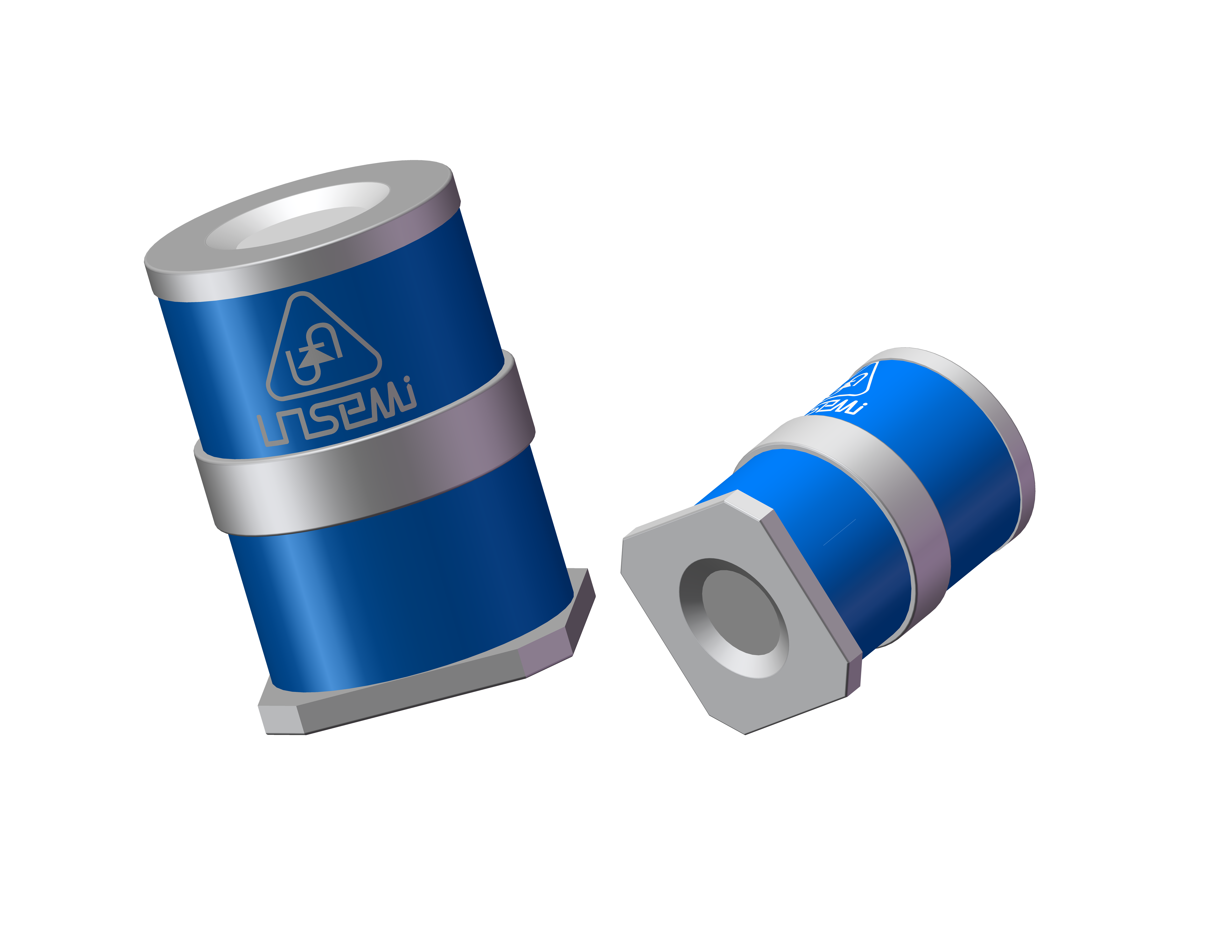

Package | SMD5076 |

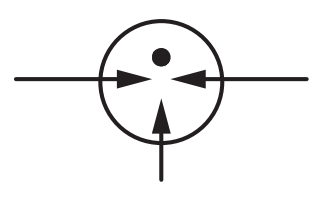

Number of poles | 3 |
Spark-over Voltage @100V/S DC(V) | 600±20% |
Impulse Spark-over Voltage @100V/µS | 1100 |
Impulse Spark-over Voltage @1KV/µS | 1200 |
Minmum Insulation Resistance (MΩ) | 1000 |
Arc Voltage @1A (V) | ~20 |
Surge Current 8/20µs (A) | 5000 |
Cj @1MHz (pF) | 1.5 |
UN3E5.pdf
